Description

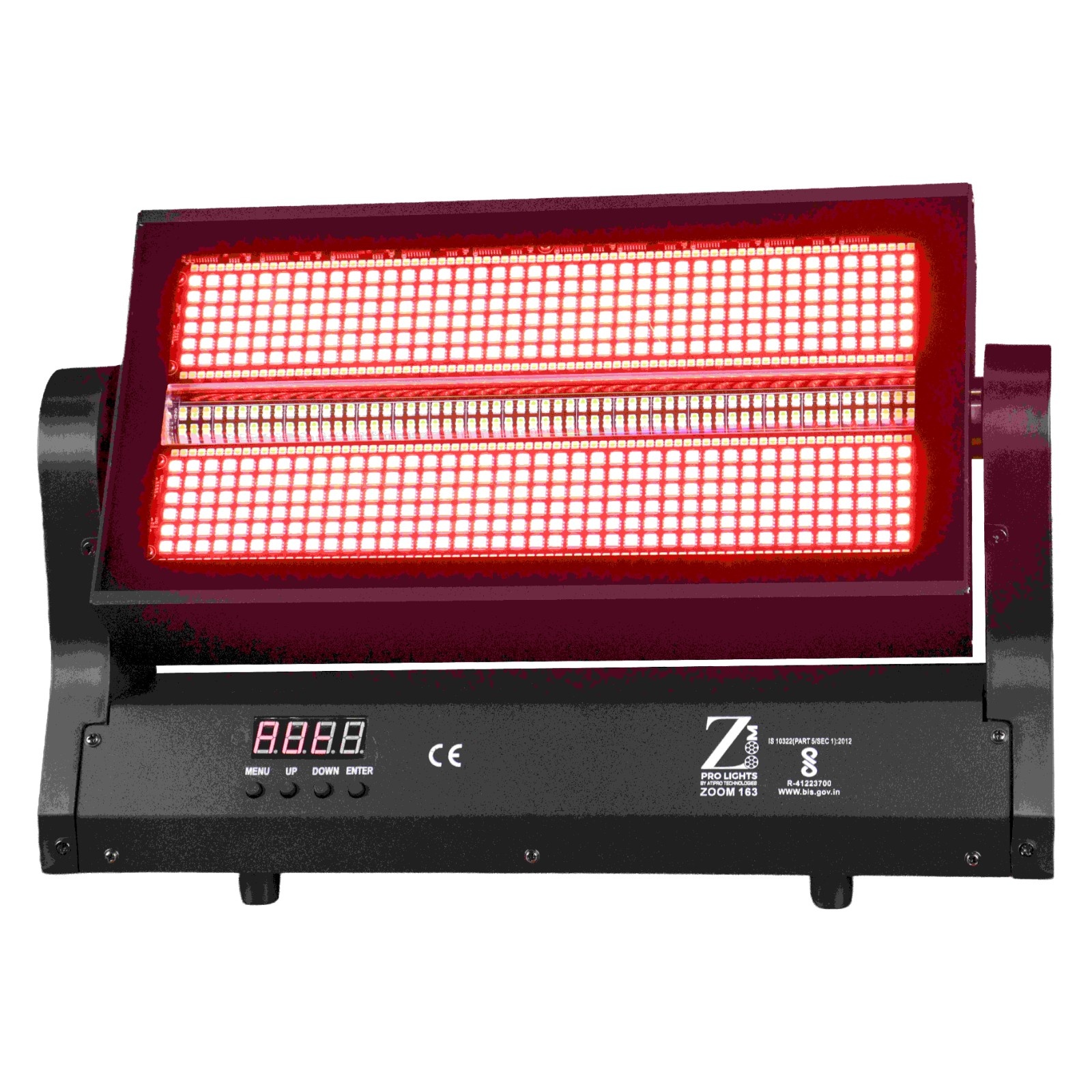

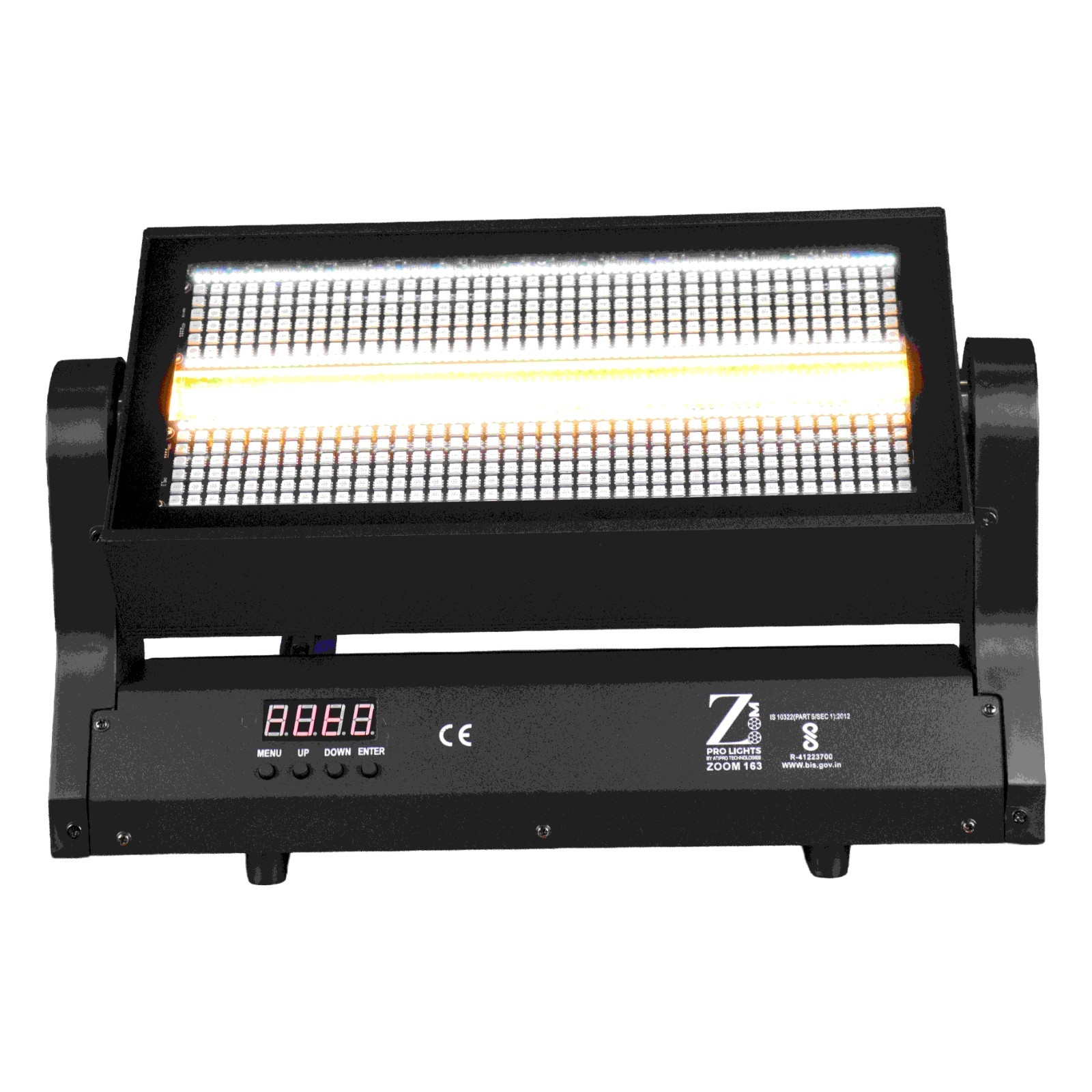

ATI PRO Moving Strobe Light – Technical Specifications

Experience next-level stage effects with the ATI PRO Moving Strobe Light, engineered for concerts, DJ events, clubs, and professional productions. Combining powerful RGB LEDs with dual-color golden light and advanced pixel control, this fixture delivers stunning motion effects, dynamic chases, and intense strobe performance.

Product Overview

The ATI PRO Moving Strobe Light features a high-density LED configuration with individual pixel control, allowing lighting designers to create breathtaking visual effects with unmatched precision. With DMX512, RDM, sound activation, and master-slave functionality, this fixture is built for both professional programmers and plug-and-play users.

Technical Specifications

Power Supply

• Input Voltage: AC 100–240V, 50/60Hz
• Power Consumption: 500W
• Output Voltage: 28V

LED Configuration

• RGB LEDs: 540 pcs of 5050 RGB LEDs (0.25W each)
• Dual Color LEDs: 450 pcs of 3030 Two-Color LEDs

Control Modes

• DMX512
• Auto Run
• Master-Slave
• Sound Activated
• RDM Function

DMX Channel Modes

• 12 Channels
• 26 Channels
• 283 Channels

Pixel Mapping Features

• 60 RGB Segments
• 100 Dual-Color Segments
• Single Point Pixel Control

Dimming

• Smooth Linear Dimming (0–100%)

Strobe Effect

• Adjustable Strobe Frequency: 1–30Hz

Operating Temperature

• -30°C to 50°C

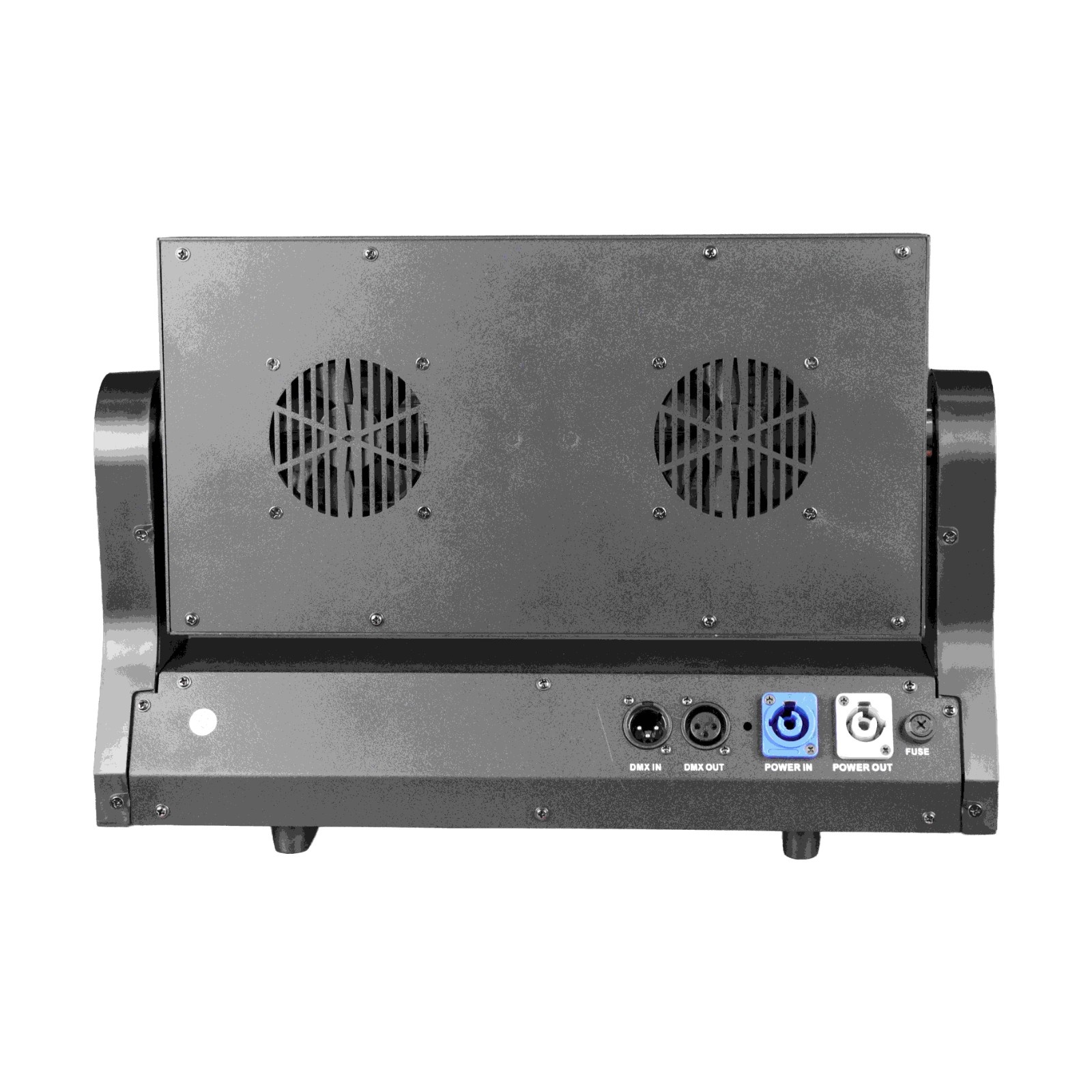

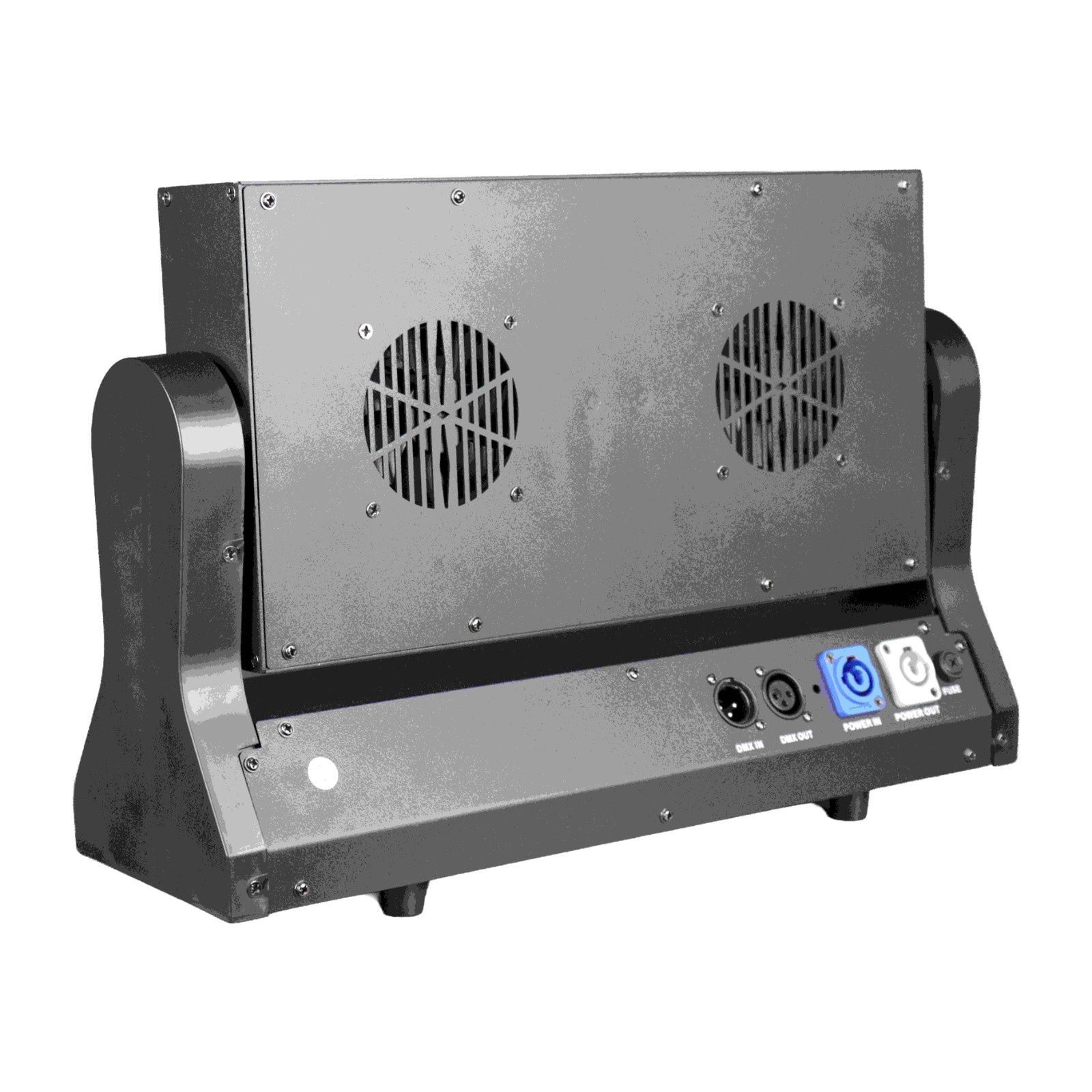

Connectivity

• DMX512 Input/Output
• Power Input/Output

Protection Rating

• IP20 (Indoor Use Only)

Physical Specifications

• Dimensions: 430 × 127 × 271 mm
• Net Weight: 6 kg

Key Features

• High-output RGB + Dual Color LED system
• Advanced pixel mapping with individual segment control
• Dynamic moving and sweeping strobe effects
• Ultra-smooth linear dimming
• Multiple control options including sound activation
• DMX512 and RDM compatible
• Compact and lightweight design for easy rigging

Ideal Applications

• Concerts and Live Shows
• DJ Events
• Nightclubs
• Stage Productions
• Wedding Events
• Rental Companies
• Television Studios
